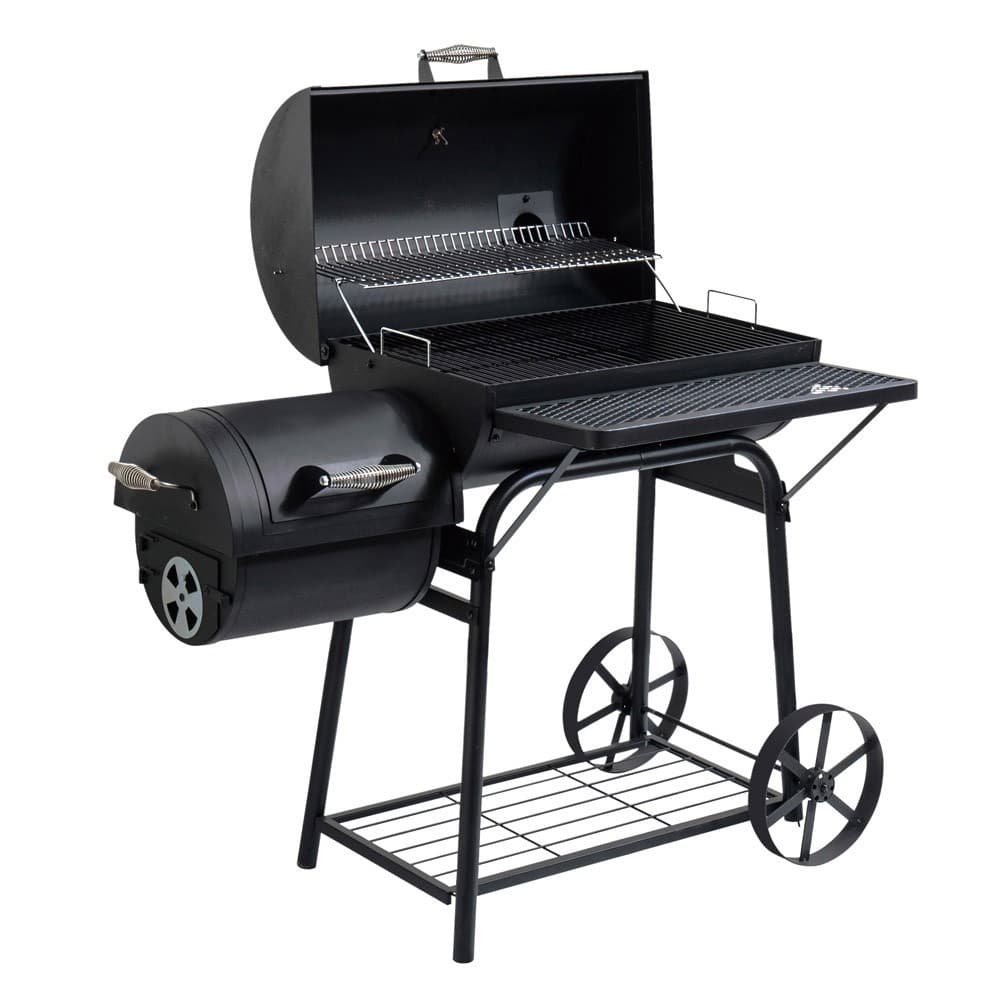

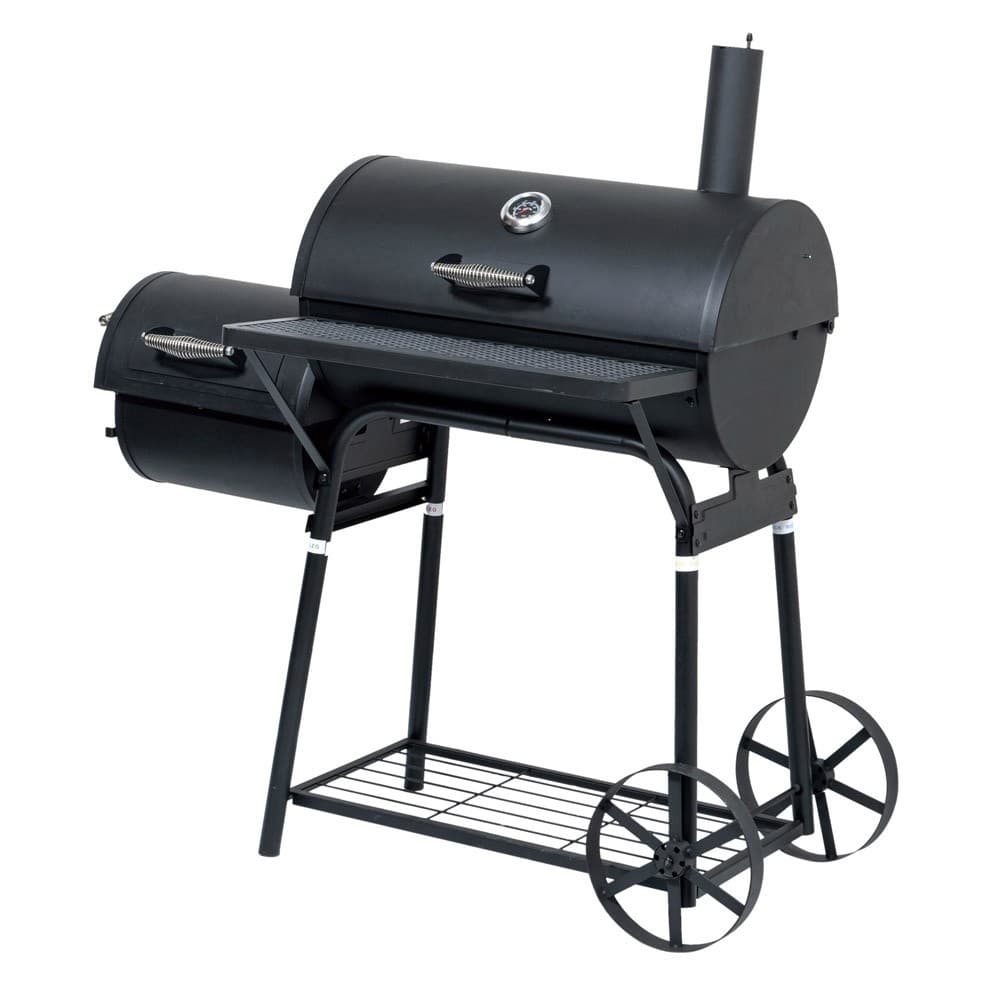

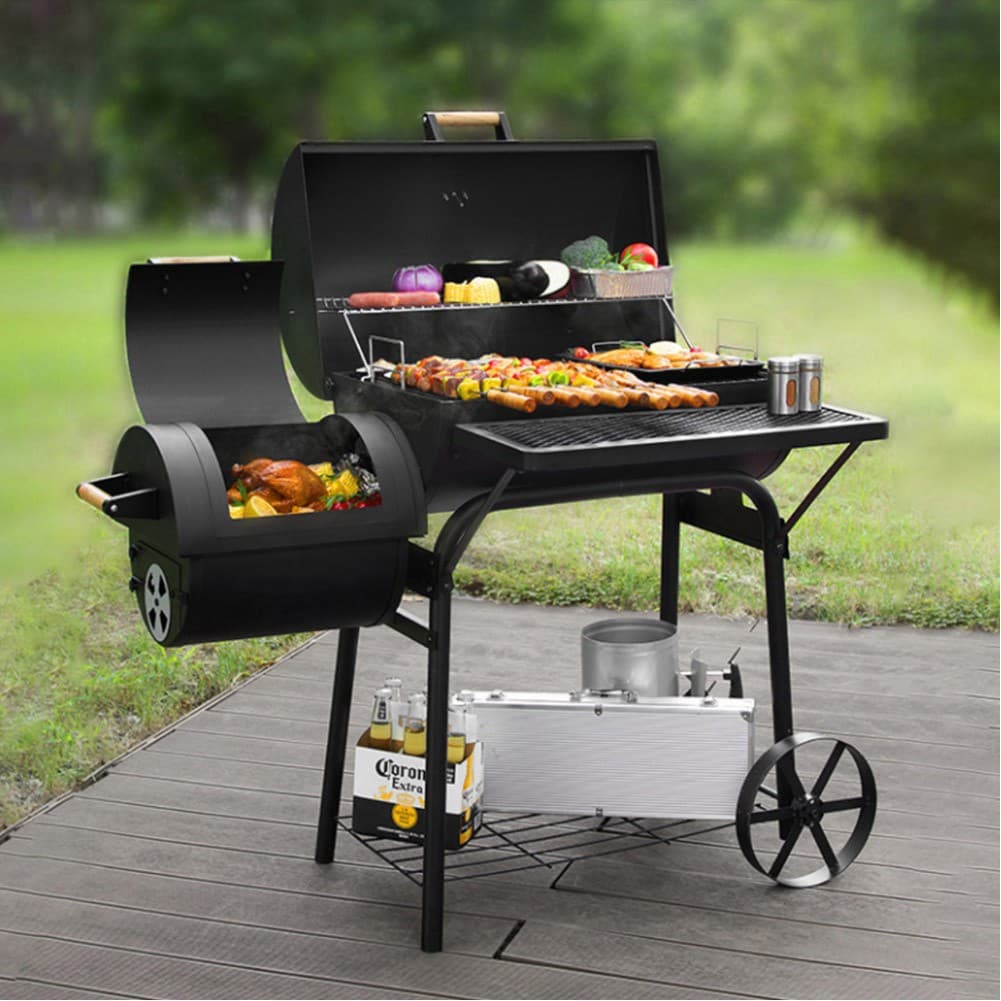

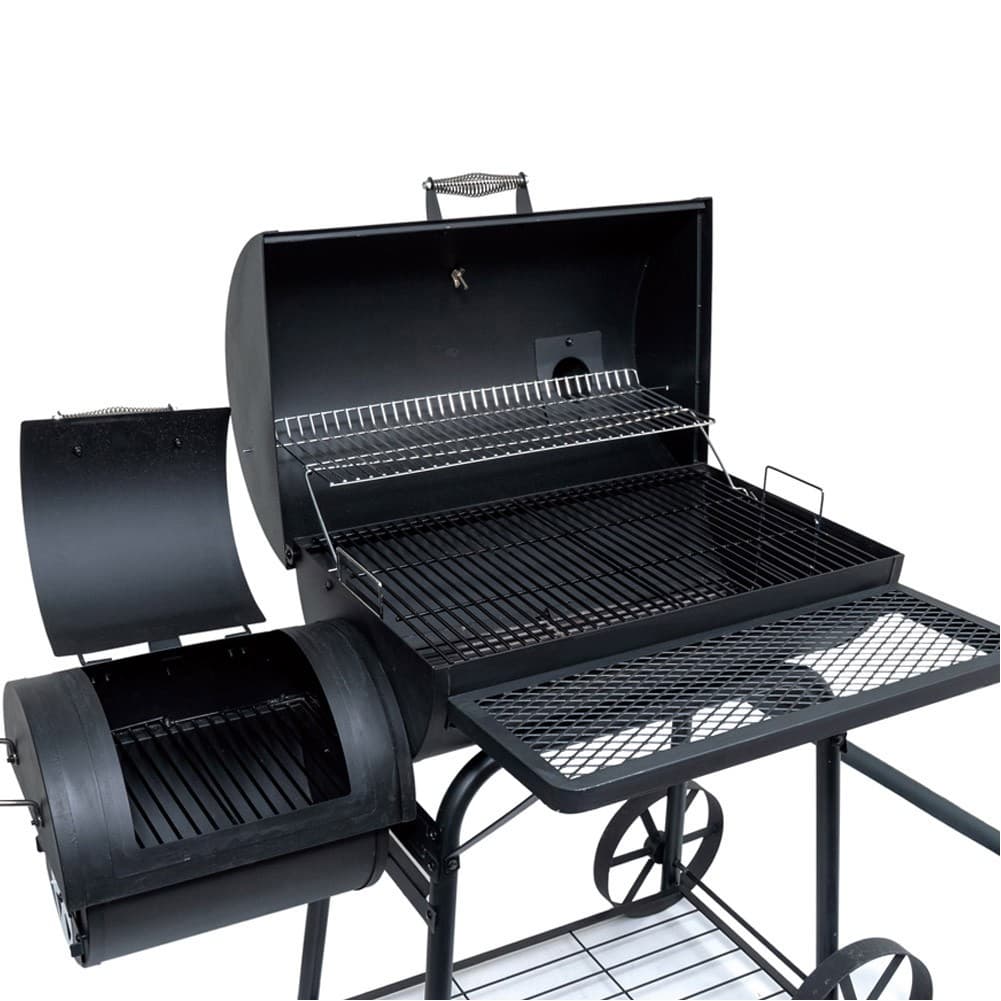

ALSANIDI, Charcoal grill for trips, Black, Size 126*72.5*125 Cm

Item No.: SNBQ-0284
Description: CHARCOAL GRILL
Size: L126xW72.5xH125CM
Weight: 26.6KG
Material: Steel & Steel wire

Thickness: Body 0.8mm / side plate :1.0mm
Cooking height: 86cm
Cooking grid: L39.5xW29cm*2pcs (Food grade Enamel Coating)
Warming rack: L59xW20cm *1pc(chrome)
Fire box cooking grid: L31.2xW16.5cm*2pcs (Food grade Enamel Coating)
Charcoal gird: L61.5xW24.5cm (High temperature powder)
Bottom net: L67xW33.5cm
Front table: L62.5xw22cm




Product details:
BODY: 0.8mm thickness, High quality steel wire handle

Cooking grid stainless steel ,Warming shelf
Side Plate storage placement
Wheels ,Easy move





-Product overview:
The durable high-temperature finish
Food grade cooking grill
Easy assembly

 


Instructions for use

- Packaging materials can be dangerous for children. There is a risk of Suffocation.
-Do not leave packaging materials within reach of young children.
-Do not use it in bad weather conditions such as high winds, do not wear loose clothing when using the grill or allow hair to come in contact with the grill.
-The installation and dismantling must be done by an adult.
-Keep a fire extinguisher near this product at all times.
-Don't place goods over 5 kgs on each side shelf.
-Do not use gasoline, kerosene, or alcohol to light charcoal. Using any of these products or similar products could cause a flare up, a flash fire or an explosion. Severe bodily injuries can be a potential result.
-Do not add instant light charcoal briquettes to the existing fire. Aflac fire may result that could cause bodily injuries.
-Do not light and operate the grill without the slide out ash pan in place.
-Keep10 feet of clearance between grill and any combustible materials when grill is in use (including, but not limited to bushes, shrubs, trees, leaves, grass, wooden decks or fences, buildings, etc.)
-The barbecue shall be heated up and the fuel kept red hot for at least 30 min prior to the first cooking.
-Do not cook before the fuel has a coating of ash.
-Do not leave grill or coals hot and ashes unattended.
-Do not try to move the grill while it is in use.
-Allow the unit to cool completely before conducting any routine cleaning or maintaining.
-Recommend the maximum coal capacity is 2.0kgs.
-" WARNING! This barbecue will become very hot, do not move it during operation"
"Do not use indoors!"
-" WARNING! Do not use spirit or petrol for lighting or re-lighting!
"WARNING! Keep children and pets away"
-Do not use necked flame in the grill bowl, use charcoal fire instead.
-After using the grill, the cooking grid can be placed on the barbecue, use oven or barbecue gloves to prevent injuries.



-“Do not use the barbecue in a confined and/or habitable space e.g., houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.”


1.Part List
No. Desc. Pic. Qty No. Desc. Pic.
Qty
1 Lid
1 17 Side plate 2
2 Body 1 18 Bottom rack 1
3 Front table 1 19 Wheel axle 1
4 Hinge 2 20 Wheel 2
5 Warming rack 1 21 Side Box Lid 1
6 Warming rack hook 1 22 Side Box Lid Stand 1
7 Cooking grid 2 23 Side Box Bottom 1
8 Charcoal grid hook 2 24 Side Box Grid 2
9 Charcoal grid 1 25 Side Box Bracket 1
10 Ash pan 1 26 Side Door
1
11 Chimney 1 27 Damper Locker 1
12 Lid Handle
2 28 Side Box Charcoal Grid 1
13 Front left leg 1 29 Side Box Handle 1
14 Back left leg 1 30 Thermometer 1
15 Front right leg 1 31 Air door 1
16 Back right leg 1
2.Screw List
No. Desc. Pic. Qty No. Desc. Pic.
Qty
A M6 nut
15 E M8 Lock nuts 2
B M6*12 screw 45 F M5 nut 2
C M6*15 shoulder
screw 3 G M5*10 screw 2
D M6*20 shoulder
screw 2


Step 1
Step 3


Step 5

Step 7

Step 9

Step 11

Step 13


Step 15
Step 17

Step 19

Step 21
