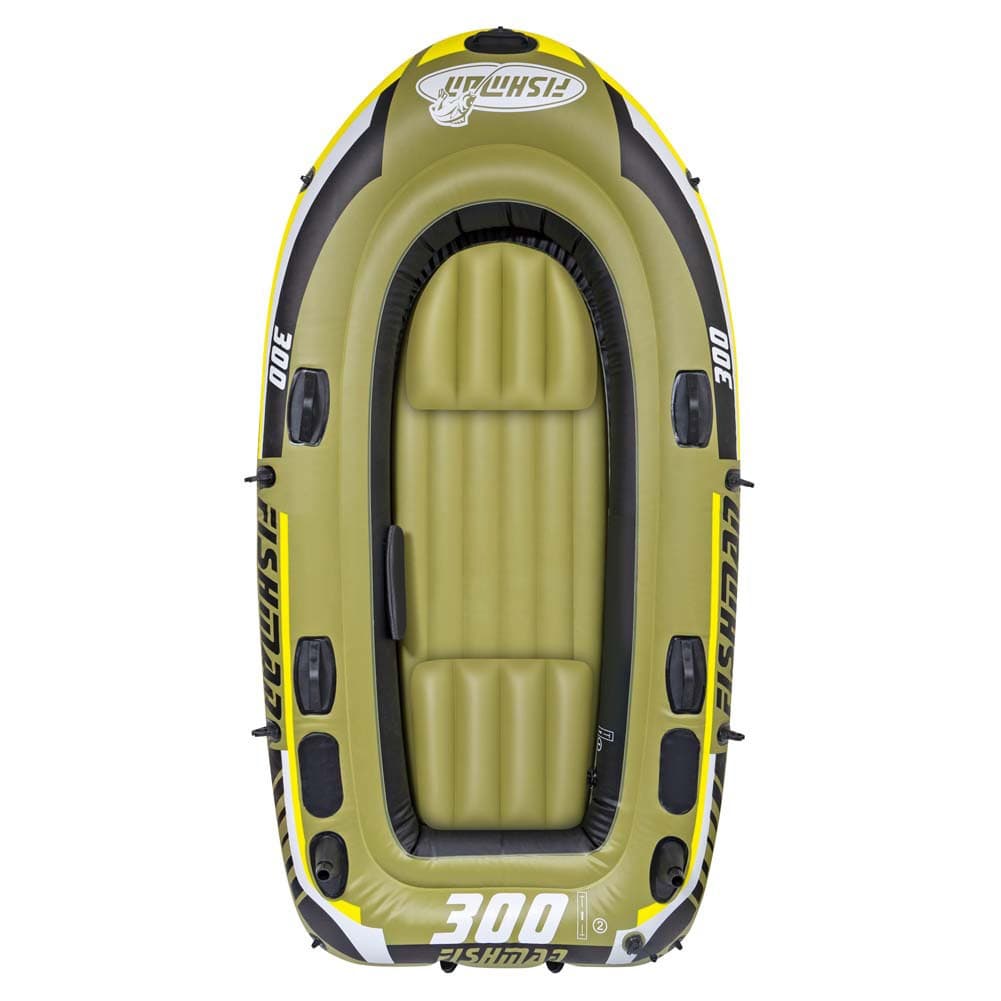

DPT, inflatable boat, Green, Size 252*125*16 Cm

Item No.: DPTR-0167
Item Name: KAYAK
Material：PVC
Open Size：L252*W125*H40cm
Maximum weight capacity: 265KG
Product Net Weight：9.6KG
Features:
1. Comfortable for anyone, the cockpit designed for comfort and space.
2. Made for smaller bodies of water, including lakes and mild rivers
3. Easy to assemble and disassemble, portable to carry.
KAYAK Instruction Manual
The boat is designed for voyages on sheltered coastal waters,
small bays, small lakes, rivers and canals when conditions up to,
and including, wind force 4 and significant wave heights up to, and
including, 0,3 m may be experienced, with occasional waves of 0,5
m maximum height, for example from passing vessels.
Please read this manual carefully before inflating, assembling or using your boat. Also study carefully the manual supplied with your outboard engine.
Familiarise yourself with the features of the boat and the engine and ask for professional training if you are inexperienced in handling this type of boat.
For your full enjoyment it is important to follow proper safety procedures and rules of the waterway that apply to all boats. Always check the local weather conditions before taking the boat out. Do not let yourself get caught out by currents in tidal inlets, open seas, small channels or shallow water regions.
Always use materials of good quality and of the correct specifications
whenever working on the boat. Maintenance work and repairs on the
boat should be implemented only by qualified personnel.
IMPORTANT: Keep this manual at a dry place in your boat and hand it
over to the new owner when selling the boat.
If this is your first craft, or you are not familiar with this type of boat,
please ensure that you obtain handling and operating experience before
driving this boat. Your dealer or national sailing federation or yacht club
will be pleased to advice you of local sea school or competent instructors.
The following illustration will introduce details of the craft, the equipment
supplied or fitted and its systems. Please be familiar with each part of the craft before using it.

Handle
Grab Rope

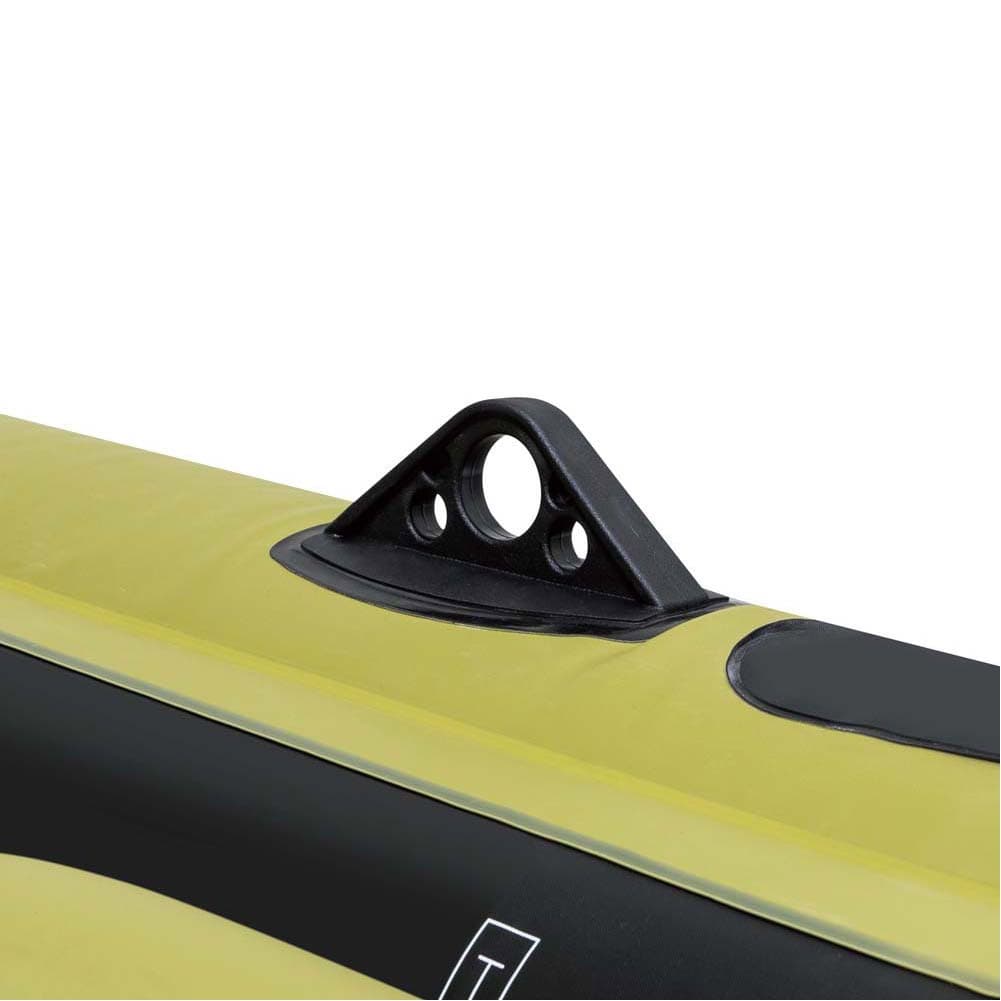

2 in I Oar Lock
Inflatable Floor
Grommet
Gear Pouch
Cushion Seat
Fishing Rod Holder
Screw Valve
Motor Bracket
Grommet

Basic Data
Item No.: DPTR-0167
Inflatable Size: 252x125x40cm(99˝ x 49˝ x 16˝)
Max. Power of motor: 1 HP 0.75 kw
Capacity (Person): 2 1
Max. Load Weight (kg): 265kg 583Lbs




Part List
Item No.
Boat
Cushion
Oar
Pump
IMPORTANT WARNING
To enhance the enjoyment of your boat and protect the safety of passengers and
operator using the boat, always strictly observe the following safety warning:
This is not a life saving device. Use only under competent supervision. Never allow
diving into this product. Never leave in or near the water when not in use. Never tow from any vehicle. Adult assembly and operation required.
Adults should inflate the chambers in numbered sequence and use the printed ruler on the hull of boat to check while inflating. Excessive inflating the boat can cause the chambers to burst or cause damage to the welded seams.
Not following the operator's instructions, which may detail important inflation and assembly sequences, can cause capsizing and drowning.
Taking the boating safety course and get hands-on training from your boat dealer or local boating authorities. Review all safety requirements regularly. Never navigate alone.
A Personal Flotation Device(PFD) is required for each passenger is especially important that children and non-swimmers wear a personal flotation device at all times. Children and non-swimmers need special instruction in the use of PFD.
Use caution when stepping or climbing aboard the boat. Step into the center of the boat for maximum stability. Distribute the weight of passenger, gear, tackle box and accessories evenly so that the boat sits even front to back and side to side uneven distribution of persons or loads in the boat can cause capsizing and drowning.
Do not use your boat if you suspect a puncture or leak. It might be unsafe.
BEWARE OF OFFSHORE WINDS AND CURRENTS. These could be unsafe conditions.
Follow these rules to avoid drowning. paralysis or other serious injuries.
WARNING: It is the responsibility of the boat operator to identify and obey all local and state laws pertaining to boat safety and required safety equipment. Please consult your local authorities to ensure compliance.
Do not allow unattended children in the boat. Always make sure that at least one responsible adult supervising a child and those who don't know how to swim at all times.
Always maintain the proper boat safety equipment in an easily accessible place in your boat. indicate clearly emergency phone numbers as well as safety advisories and rules (such as “No jumping or Diving")
The total number of persons and total weight shall not exceed the information printed on the boat. Do not exceed the maximum recommended capacities. Exceeding the data given on the capacity plate can cause capsizing and drowning.
INFLATING AND DEFLATING THE BOAT
Inflating
If the boat is inflated during cold weather or without direct sunlight on the tubes care must be taken not to over-inflate the tubes. As the air inside the tubes heats up due to temperature rises or sunshine. the pressure will increase. The boat is not fitted with a safety valve. so the pressure must be monitored at all times.
Select a clean area free of stones, gravel,. sticks or other sharp objects
Defold the boat completely in the manner that the boat lays flat on the floor evenly.

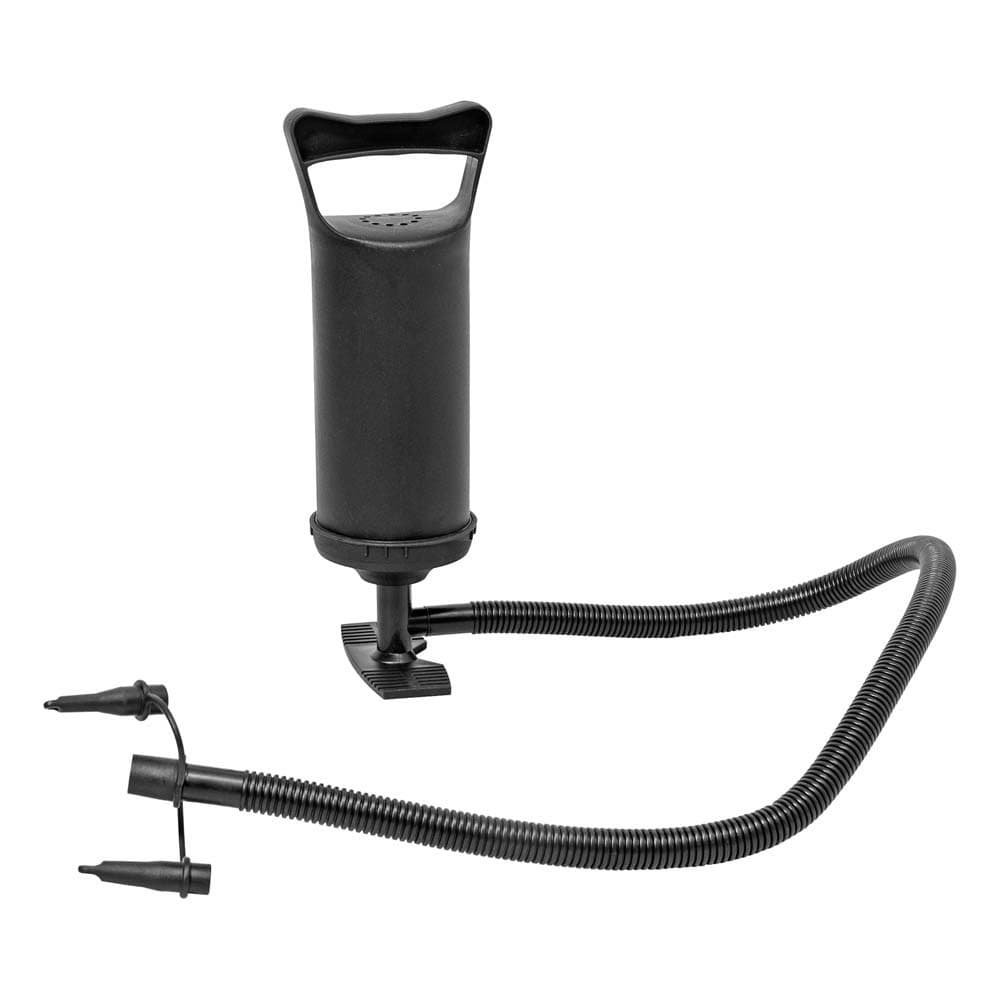

-Use a hand or foot operated air pump to inflate the boat.

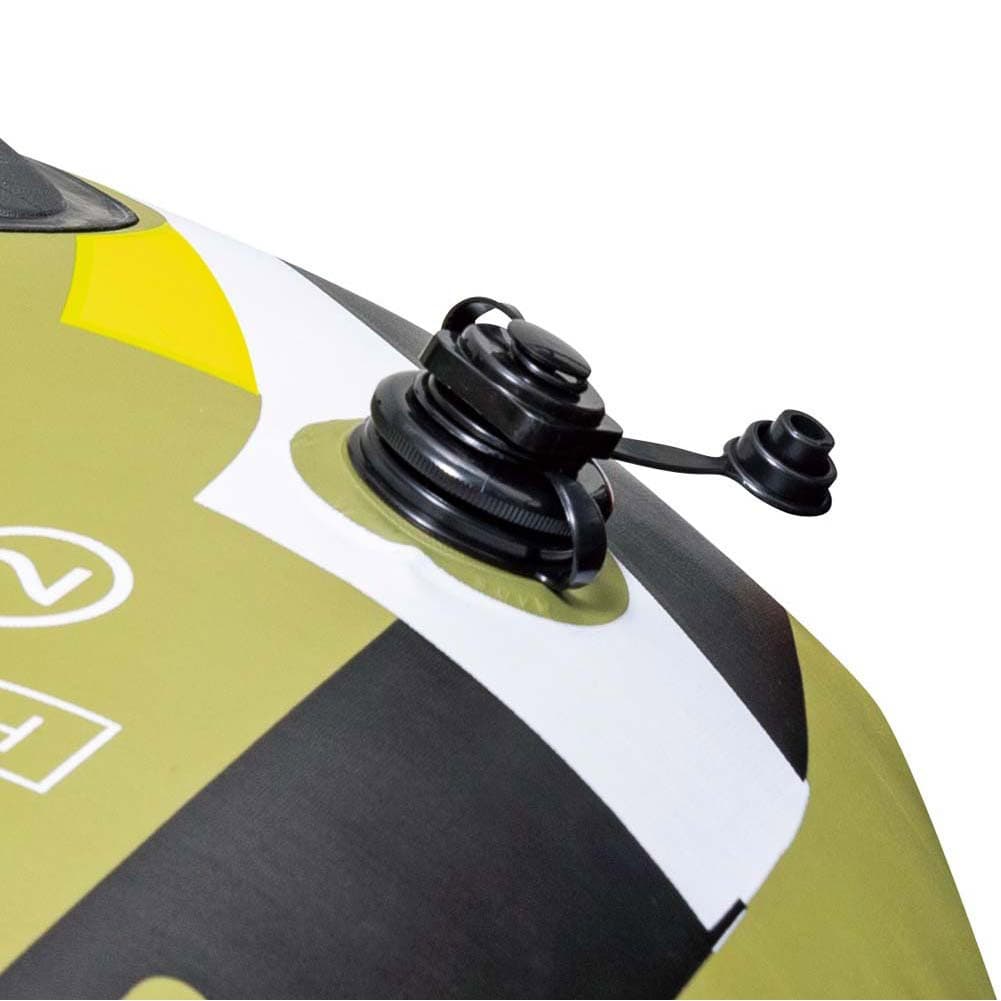

Inflate the screw value:
1) Fix the big ring of valve cap on the base
2) Screw the middle part of valve cap on the base and then inflating
3) Screw the small cap of valve tightened
!!!! Please do NOT use an air compressor !!!!
Please inflate the chambers in the numeric order. If the boat is inflated too much it might burst or the seams might tear. Fill each chamber until it is stiff. Measure the printed ruler to 10cm with the equipped hard ruler to check the main chamber for proper inflation.
252 x 125 x40cm: MAXIMUM PRESSURE 0.05 bar (0.725 PSI)!!!
Due to changes in temperature the valves might become inflexible. To get them flexible again please soak the closed valves in warm water for some minutes The boat does not have a safety valve. The air pressure has to be observed all the time.
Deflating:
Remove the valve completely from the valve seat and also remove the plug from the inlet of the valve.
Press the valve base together for deflation.
OPERATING INSTRUCTION
Preparation before departure
Acquire necessary information and inform other passengers:
1. Get information on local laws, regulation and hazards related to water activities
and boat operation.
2. Check weather forecast, local currents, tides and wind conditions.
3. Advise someone on land of the time you plan to be back.
4. Explain basic boat operation to all passengers.
5. Be sure that at least one of your passengers can operate the boat in case of
emergency.
6. Learn how to determine the distance you can cover, and remember that bad
weather conditional can alter this.
Check the working condition of the boat and equipments:
1. Check inflation pressure.2. Check all valves.3. Check the load is evenly
distributed on deck of boat: front to back and side to side.4. Take care for
maximum motor power.
Check that required safety equipment is on board (Check the laws and regulations of the country or locality in which you’re boating)
1. One personal flotation device(PFD) for each passenger
2. The air pump, oars repair kit and tool kit.
3. The mandatory equipment.
4. The boat papers and your boating license (if applicable).
5. Lights are required if operating after dark.
Rules to observe during navigation
1. Be responsible and strictly follow the safety rules. Do not neglect the safety
rules, this could hazard your life and lives of others.
2. Learn to keep control of your boat.
3. Respect local regulations and practices.
4. Navigate on “sheltered water” only.
5. Remember weather conditions can rapidly deteriorate. Always be sure that you
can reach a shelter rapidly.
6. Do not take alcohol or take drugs before or while operating your boat. All
passengers should maintain sobriety in all voyage.
7. Keep fire away. Do not smoke on board.
8.Make sure your passengers remain sit. Only if the boat is at rest or at low speeds passengers can sit on the tubes and grab the line around the boat. At planning speeds in rough water or during sharp turns, all passengers should position themselves in seats or on the floor.
9.No bow riding. Bow riding is illegal in most areas and is extremely dangerous.
10.Be very careful when landing. Arms and legs can be hurt when hanging off the boat.
11.Always avoid areas where divers/swimmers are in the water. Keep a sharp look out especially when operating near beaches and launch sites. The Alpha flag indicates proximity of divers. You MUST stay at a good distance(minimum 50 meters.
MAINTENANCE AND STORAGE
Depending on the parts usage, keep some spare available, all parts suggest must consult local agent for factory authorized parts when servicing system.
Clean your boat after a trip to prevent damage from sand, salt water or sun exposure.
Use a garden hose washing the boat and a sponge and mild soap can clean most dirt.
Make sure the boat is completely clean and wipe the boat with the dry cloth before storing, otherwise the boat will be mouldy
Do not use solvents to clean the boat, solvents may damage material or plastic components in system.
Store all boat accessories in a dry storage location with ventilation. Make sure that all parts are dry before storage
You can store the boat inflated or deflated
>Choose a dry and cool place to store the boat.
>Don't hang the boat up
>Don't place any heavy or sharp objects on it
The boat is designed to be storable, seasonal boat. If you live in a temperate area in which the boat will not be in use all year-round it is STRONGLY RECOMMENDED to deflate the boat and dry it thoroughly, and store it in a protected area for the off-season. This will help extend your boat and prevent a safety hazard from developing while the boat is not in use.
Warning:
Certain household cleaning solvents, chemicals and other liquids (such as battery
acid, oil and gasoline) could damage the PVC fabric. In the event of spill or
mishandling, you should check for leaks and inspect for structural integrity.
DISASSEMBLY
Preparation before departure
1.Remove all the accessories from the boat fishing rod, oars.
2. Open all valves and deflate the boat completely
3.Fold the boat(make sure that the boat is clean and dry. See the above Maintenance & Storage chapter).
TROUBLE SHOOTING
When you find the boat appears a bit soft, it might not definitely be because of a leak Firstly you can check if valve caps are loose. If all valves are in good condition, you can consider if it is caused by temperature variation: If the boat was inflated in the day at higher temperature, say, 35°C(95°F) and air might cool down to 25°C (77°F) overnight, so that the pressure on the hull may lower down and the boat will appear soft the next morning.
1.lf valves and temperature variation are not the reasons, you need to start looking for a leak:
2.Position the leak area: You can check your boat from a few feet away or flip it over and closely check over the outside. Any large leaks should be clearly visible.
3.Pin point the location of the leak: spray mild soapy water over the suspicious areas. Any leak will produce bubbles.
4.Check valves system for leak.
REPAIRS
Little holes or puncture can be repaired with the repair kit come along with the boat
1.Find the leak.
2.Thoroughly clean the area surrounding the leak to remove any dirt or grime
3.Cut a piece of repair material in round shape, which should be larger than the damaged area.
4.Using a piece of the repair kit, trace outline of the patch lightly
5.Apply adhesive to the underneath side of the patch and around the area to be repaired. Coat the affected are lightly but completely with glue.(not included in the product, please purchase separately from your market.)
6.Put the patch on the damaged area and press down firmly
7.Allow12hours for repair to dry After patch has dried, apply glue around the edges for a complete seal (dry 4 hours)
