DPT, Air Pressure for Car, Orang, 60 Par

Model : DP4X4-0001

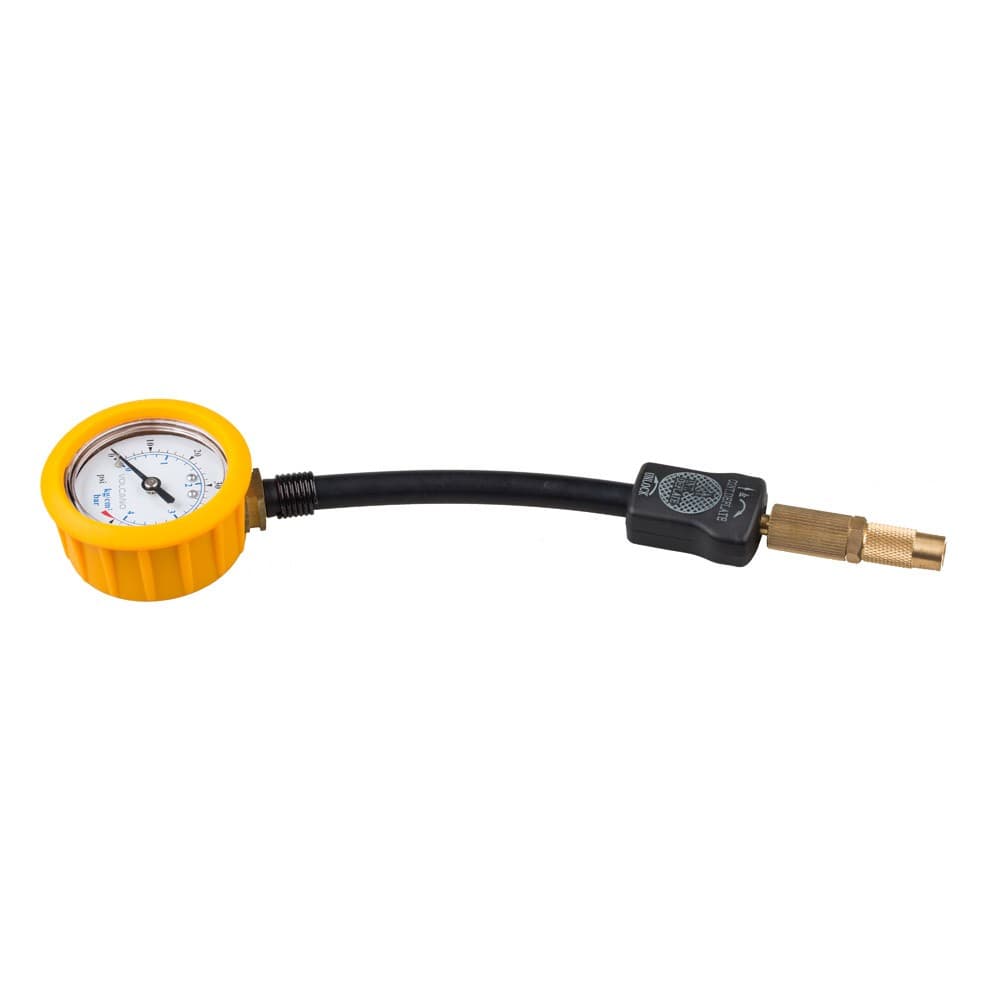

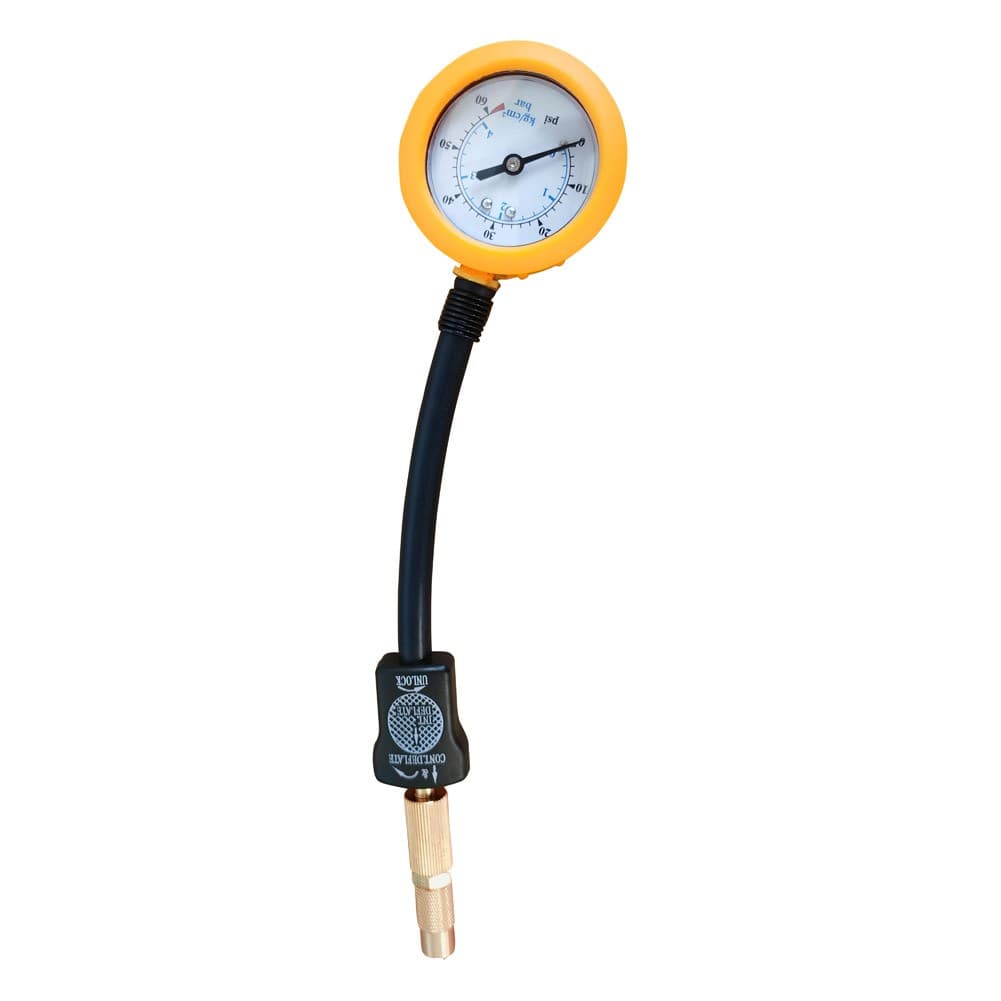

Tire Gauge & Deflator

Only needs 55 seconds to deflate half of a tire (from 30psi to 15psi)
The quick deflation can solve following trouble for you:

Rugged mountain road
Trapped into muddy road
Snowy/ice road
Harsh desert

Warm tips: When the environmental temperature is below 7 degree centigrade, the rubber of the car tire will become rigid easily, causing the car wheel to decrease friction with earth and to be slipped easily, which would cause potential danger for driving in winter. If use this product, the tire pressure could be released by quick deflation valve, to avoid the potential danger, to keep driving much safer.

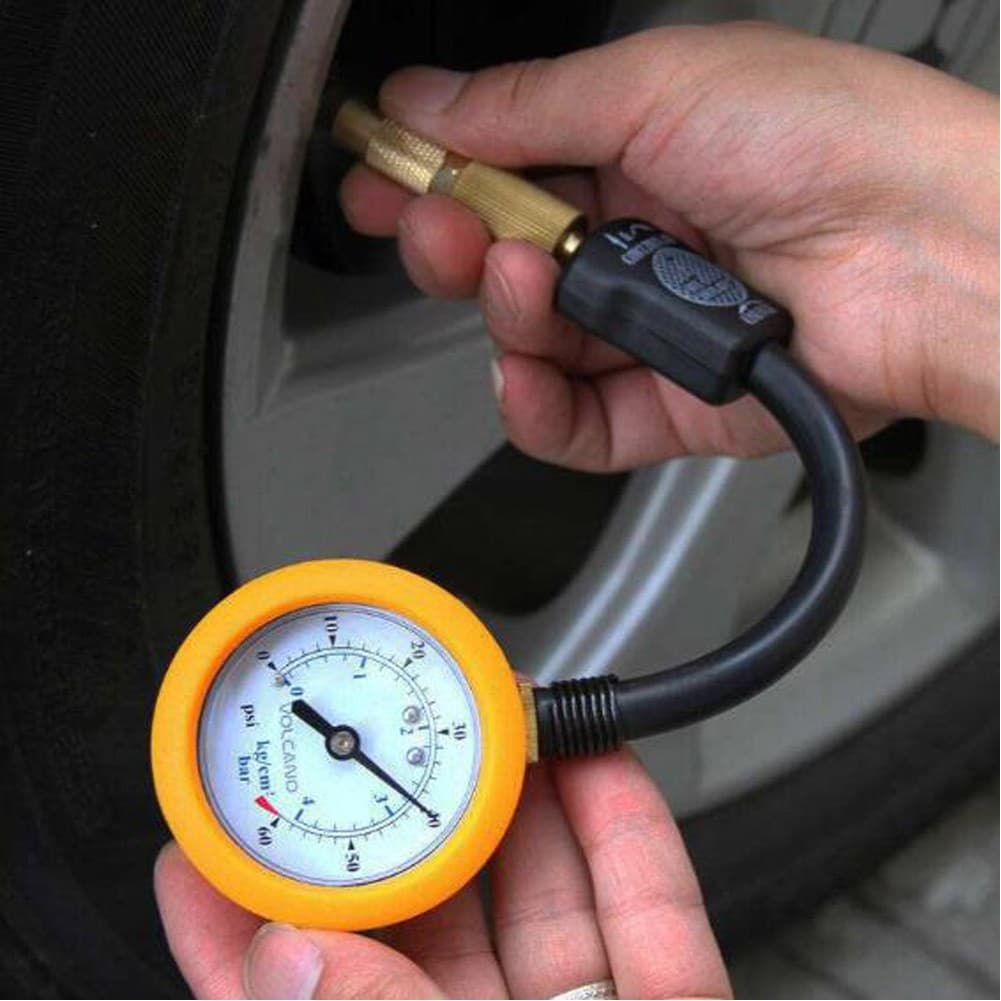

Measure tire pressure:
1. Measure the tire pressure when the tire is under the normal condition.
2. Attach the tire chuck to the tire valve stem until the needle moves to the highest position.
3. Reach the tire pressure valve while facing the front of the gauge vertically.
4. Check the rated tire pressure value( the value is always marked on the flank of the tire) and ensure the tire pressure is normal.
5. Due to the expansion caused by heat and contraction caused by cold, in summer, the temperature is high, releasing pressure properly is recommended. In winter, the temperature is low, increasing pressure is recommended.


Intermittent Deflation:

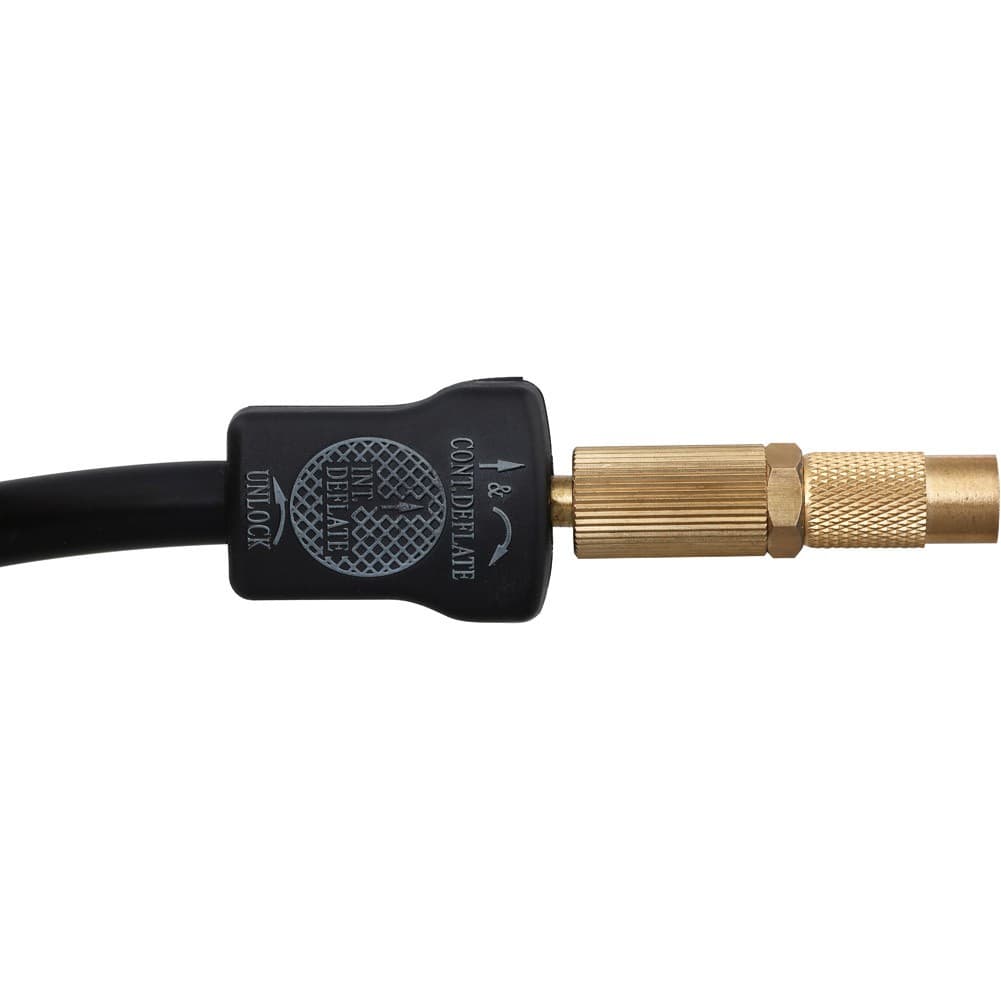

Tire pressure can be quickly and easily adjusted using the Intermittent Deflation function of the Deflation Collar
1. Screw tire chuck onto the valve stem
2. Push Deflator Collar toward tire valve stem to decrease tire pressure
3. Release Deflation Collar to halt deflation


Continuous Air Down:
Rapid Hands-Free Air Down can be easily achieved using the continuous deflation function of the Deflation Collar.
1. Screw tire chuck onto the valve stem.
2. Slide Deflation Collar toward tire valve stem and turn clockwise to engage clock.
3. When desired pressure is reached, turn counterclockwise to disengage lock.

Caution:
1. Not for use reading pressure over 60PSI. Gauge can be damaged reading excess pressure.
2. Blow out dirt before checking an uncapped tire stem valve.
3. Accuracy may be impaired by dropping or severe impact, or by over-pressure usage.


Safety Precautions:
1. Always exercise extreme caution when driving with reduced tire pressure
2. Never exceed 20 M.P.H when driving with partially inflated tires.
3. Never make sharp turns while driving with reduced tire pressure.
4. Re-inflate tires before high speed traveling on roadways.


Swivel
Tire
valve stem
Measure tire pressure


Push forward
Tire valve stem
Intermittent deflation


Push forward
And swivel
Tire valve stem
Continuous deflation

Quick
Release
