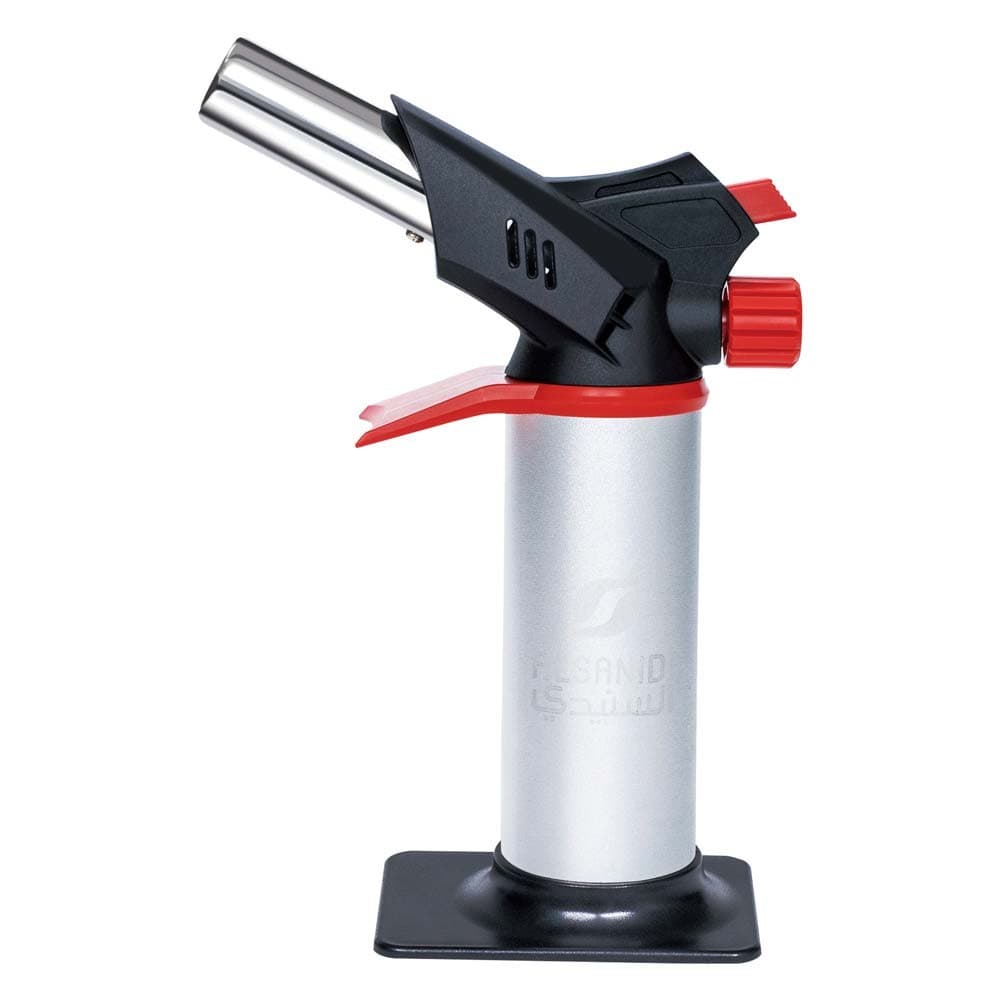

ALSANIDI, Refillable Cooking Torch, Silver*Black, Size138*70*200 Metre

Item No.: SNTO-0213
Item Name: Refillable gas torch
Arabic Name: شعلة طهي قابلة لإعادة الملء
Size: 138*70*200mm
Material: copper + aluminum + stainless steel + zinc alloy + plastic
Color: Black
N.W.: 293 G
Fuel: butane
Features：
1. High temperature flame and adjustable Flame, makes your cooking is much easier.
2. Refillable and easy to operate, fits all butane tanks




Words on the color box:

Fire nozzle
Baffle
Gas cylinder
Gas input valve
Ignition
Gas releasing valve
Flame size adjust at will
Insurance
Switch
More secure
Base
Gas input valve





High temperature flame
1300℃/2500F
Fire can be adjusted
Ten thousand times ignition
Inversion using
Safety switch
Anti-Flare System 360︒
Instructions
Read the instructions carefully and familiarize yourself with the appliance before using it. Keep the instruction sheet for future reference.

Gas filling
. Filling capacity is 16 ml.
. Use only high-quality butane gas.
. Remove stand by pulling away from torch to secure access to filling valve (4) on the bottom.
. Shake butane gas cylinder to warm the fuel up.
. Make sure fuel supply is OFF by turning adjustable flame knob
(2) clockwise all way to the right.
. Insert the gas cylinder nozzle vertically down into the filling valve
(6) to start fueling （FIGURE I).

. At the first sight of liquid gas over-flowing out of the filling valve (4) stop fueling immediately
. After fueling, allow a few minutes for gas to stabilize before operation.
Ignition
. Turn gas knob (2) counter -clockwise until you hear gas flow (FIGURE 2)

. Press the ignition button (1) and flame will ignite instantly (FIGURE3)

Flame Adjustment
. Fuel consumption is 4 ml/s.

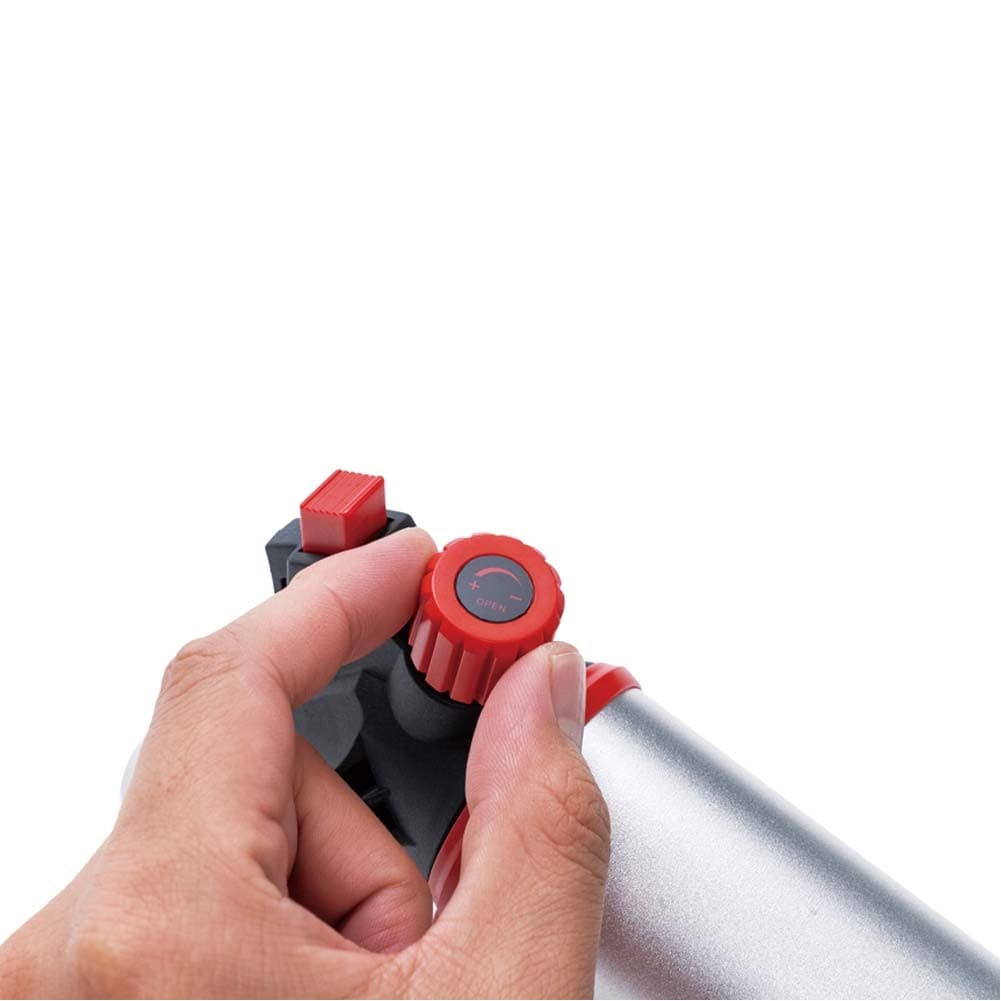

. Adjust the flame length during operation by turning the flame adjustment knob (2). Turning in counter-clockwise direction will increase the flame length, when turning clockwise will decrease the flame length (FIGURE 4)

. For best heating results, keep the flame length at about 1"to 1.5"(2.54 to 3.81cm). Do not adjust the flame too long as it will only waste the fuel and make the flame unstable.
. At the higher altitudes, torch may not operate at maximum flame setting. For the best result, adjust the flame adjustment knob (2) to the mid-range
Turning off
. To shut off flame, turn the adjustable flame knob clockwise all the way to the right (FIGURE4).
The fuel supply is completely shut off.

Do not try to repair or disassemble any parts of the torch.

Carefully read the following instructions before using the torch for the first time.
Instructions for Use
. Turn the torch upside-down and feed the gas through the filling valve (4) under the bottom of the fuel tank while keeping the torch vertical until the gas stars to overflow. Wipe off excess over-flow butane and then wait several minutes before using it.
. Turn adjustable flame knob (2) counter-clockwise until you hear gas flow. Press ignition button (1). Adjust the flame by turning the knob.
. Once finished, turn adjustable knob (2) clockwise all the way to right to shut gas flow off.
. Torch can burn up to 60 minutes depending on flame intensity.

Precautions of Use
. Keep the torch out of reach of children.
. Only charge with butane gas (for gas lighters).
. The flame guard becomes very hot when used. Do not touch it.
. Never leave the torch unattended when on.
. Allow the unit to cool down completely after each use and store in a place protected from any source of heat and direct sunlight.
. Do not drop the torch.
. Should the unit present sighs of malfunction or leakage, do not attempt to repair it.
. For safety and guarantee validity reasons do not try to open the torch.
. Do not pierce the torch and do not throw it into fire.
. Should the torch the discarded, dispose of it in a suitable container.
. Keep this information for future reference.

Parts Identifications
1. QUICK FIRE IGNITION
2. ADJUSTABLE FLAME KNOB
3. REMOAVLE STAND
4. FILLING VALVE
5. FLAME GUARD
