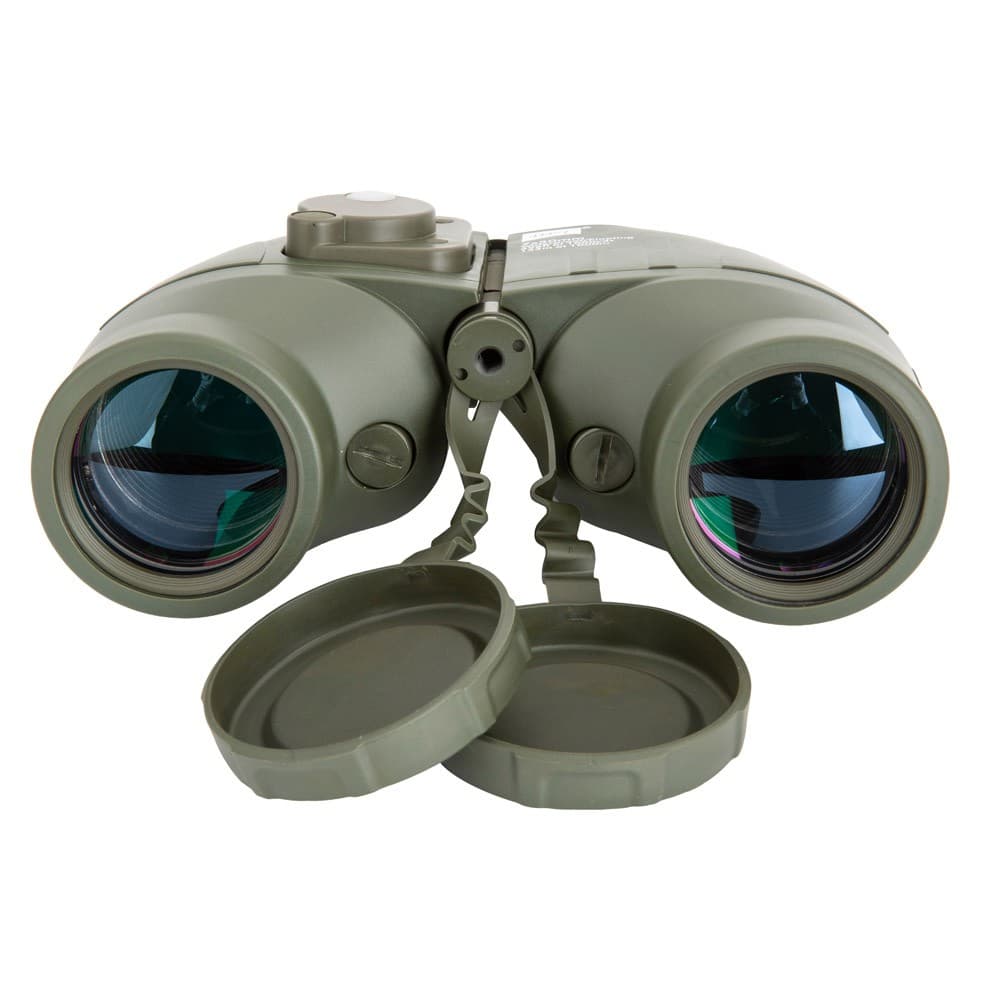

DPT, Telescope, Binoculars, Green, Size 7*50

Item No.: DPH-0051G
Item Name: Binoculars
Color: Green
N.W: 1.1kg
Material: Optical glass & Rubber & Metal
Magnification: 7X
Objective Diameter: 50MM
Field of view: 396ft@1000yds
Exit Pupil Dia: 6.8MM
Eye-Relief: 22MM
Field Angle: 8°± 5%
Near Focus: 5M
Coating: FMC
Features:
Lightweight, exquisite outward design with large, precise focus wheel.
Twist-up eye cups are comfortable to use and can be easily positioned for use with or without eyeglasses.
Best for hunting, camping, outdoor sports etc.
It offers the most pleasant viewing feelings so that your eyes will not be easy to get tired.
All lenses are Multi-fully coated, which provides multiple layers of anti-reflective compounds resulting in optimal light transmission and producing a remarkably clear field of view.
Waterproof And Fog proof - Nitrogen Gas Purged And O-Ring-Sealed To Prevent Fogging, Moisture, Dust And Debris From Penetrating Your Monocular For Reliable Performance In All Environments.
Shockproof: It can be dropped from 1.5m to 1.8m high to the sand without broken.
Thank you to choose our binoculars. In order to use it properly, pls read the manual instruction carefully according to the relative items NO., and keep this instruction well for further information in the future.

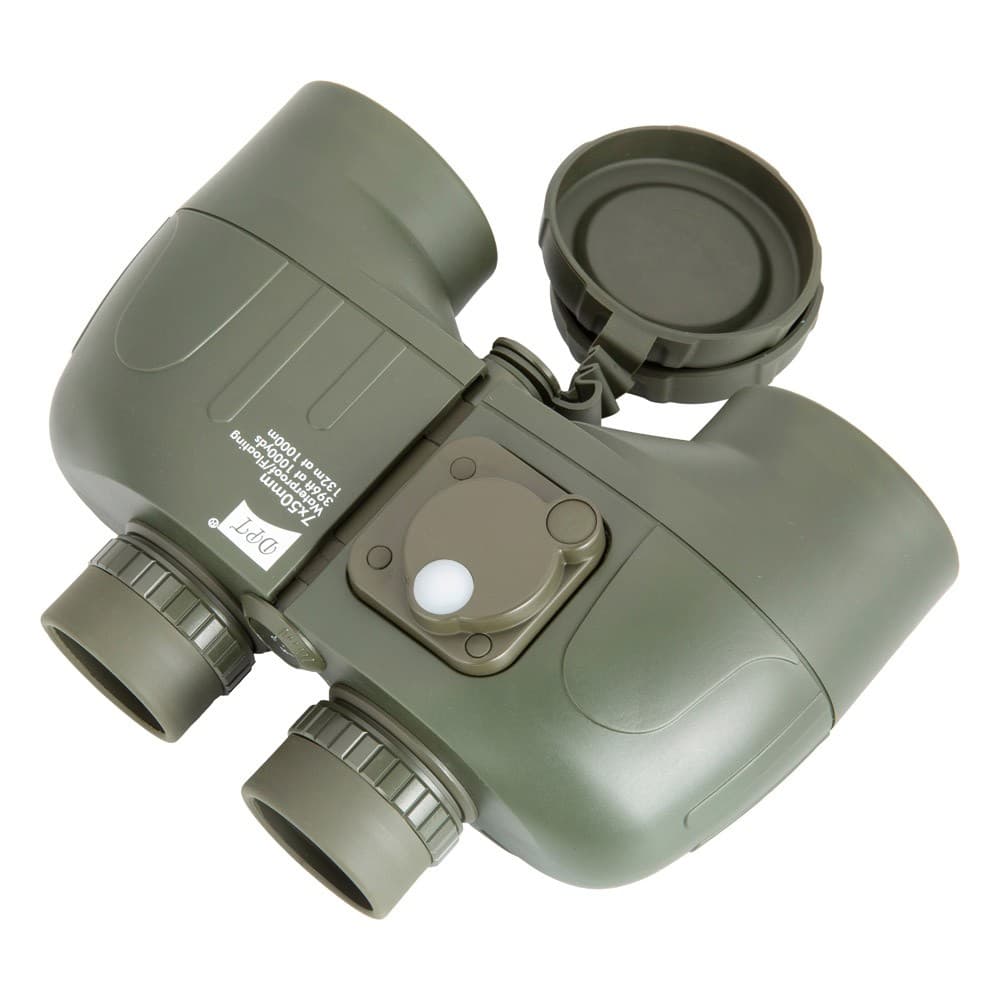

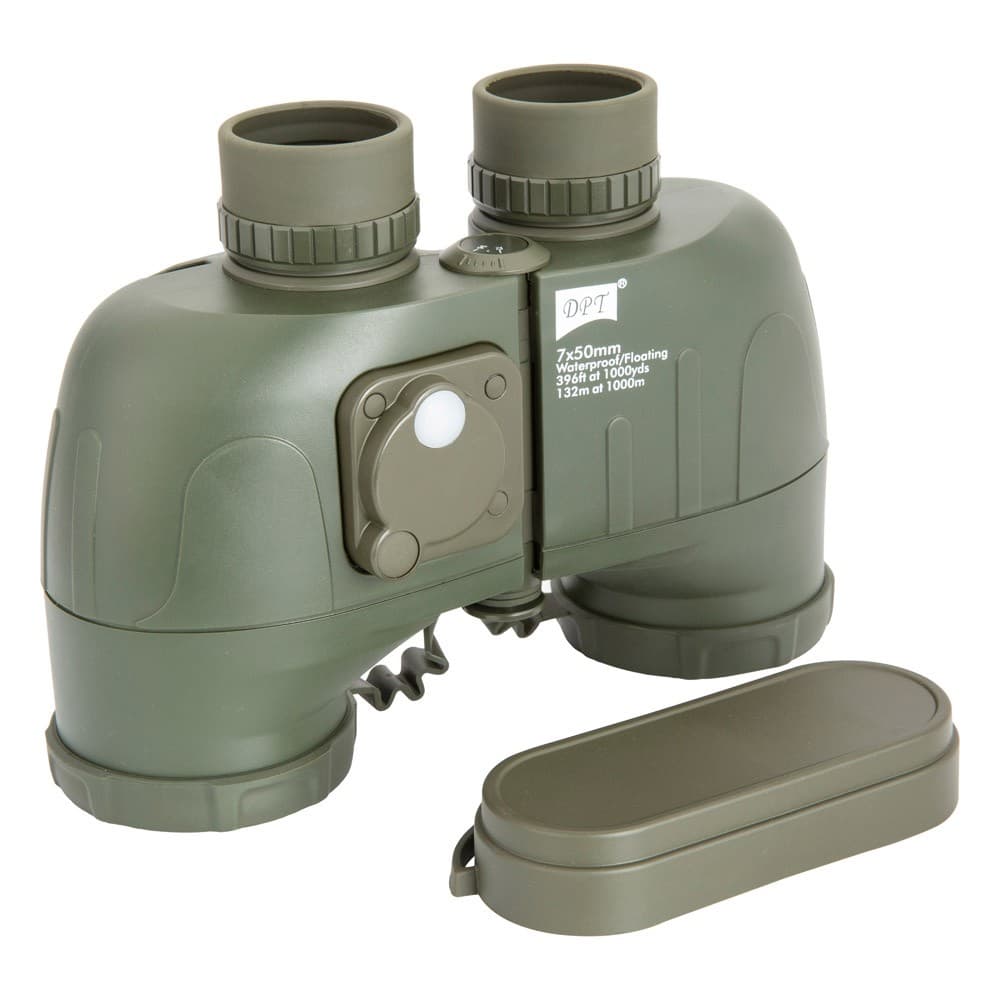

DPH-0051G is the military binocular with inter-build compass and a range finding reticle. It consists of optical system and body assembly.
Optical system. See Fig.1

/
Fig. 1

Body assembly. See Fig.2














Fig 2
Eyepiece / compass / objective lens / dust cover / hinge / prism inside body






Direction for use:

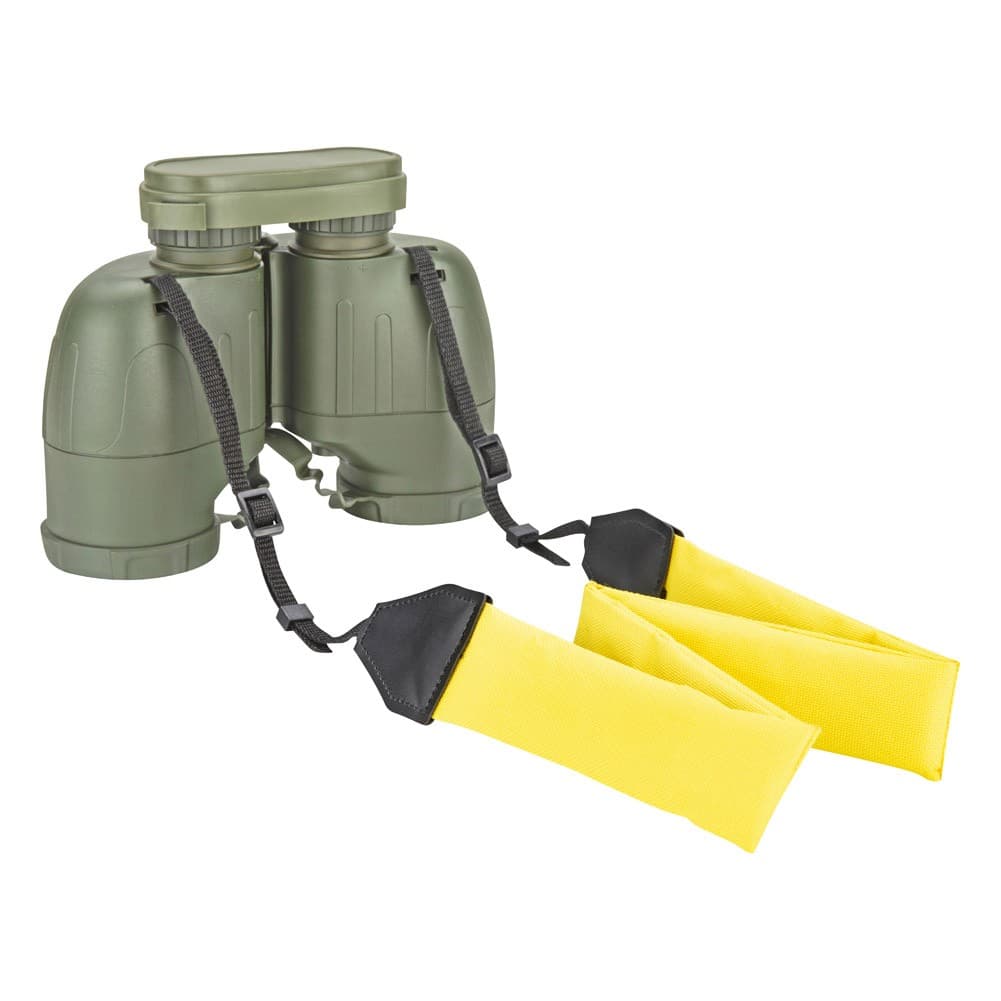

1.Pls assembly the binocular belt before using, see Fig.3.

/
Fig.3

2.Changing the batteries
Be make sure to install the batteries into the military binocular bcz the binocular need the power to illuminate the compass.
Attention: The two batteries should be replaced at the same time. The batteries should be taken out if the binoculars will not be used for a long time. Batteries left in the binoculars for prolong periods of time without being used may leak and cause damage to the binoculars, See Fig 4.











Fig. 4







Interpupillary adjustment
You must first adjust the binoculars so that each eye piece is adjusted to the distance between your eyes. This is done by putting the binocular in both hands and bending it until you can see a single circular image, See Fig 5.
/ /
Fig 5

Diopter adjustment:
To watch the object by handing the binocular, You will need to close your left eye. Rotate the right diopter adjustment rings until the object image appears sharp and clear in your right eye opening. Then open you left eye and close right eye, rotate the left diopter adjustment rings until the object image appears sharp and clear in your left eye opening. Then can get a perfect viewing. See Fig 6.

/ /
Fig 6



5. Tripod Mounting
A standard threaded socket in 1/4 inch for tripod attachment is located at the base of the binoculars shaft. Insert a binoculars tripod adapter, and attach your tripod screw to the base of the adapter.


General maintenance
Do not touch the lens by hand, be careful to protect the lens not to be injured by hard substance.

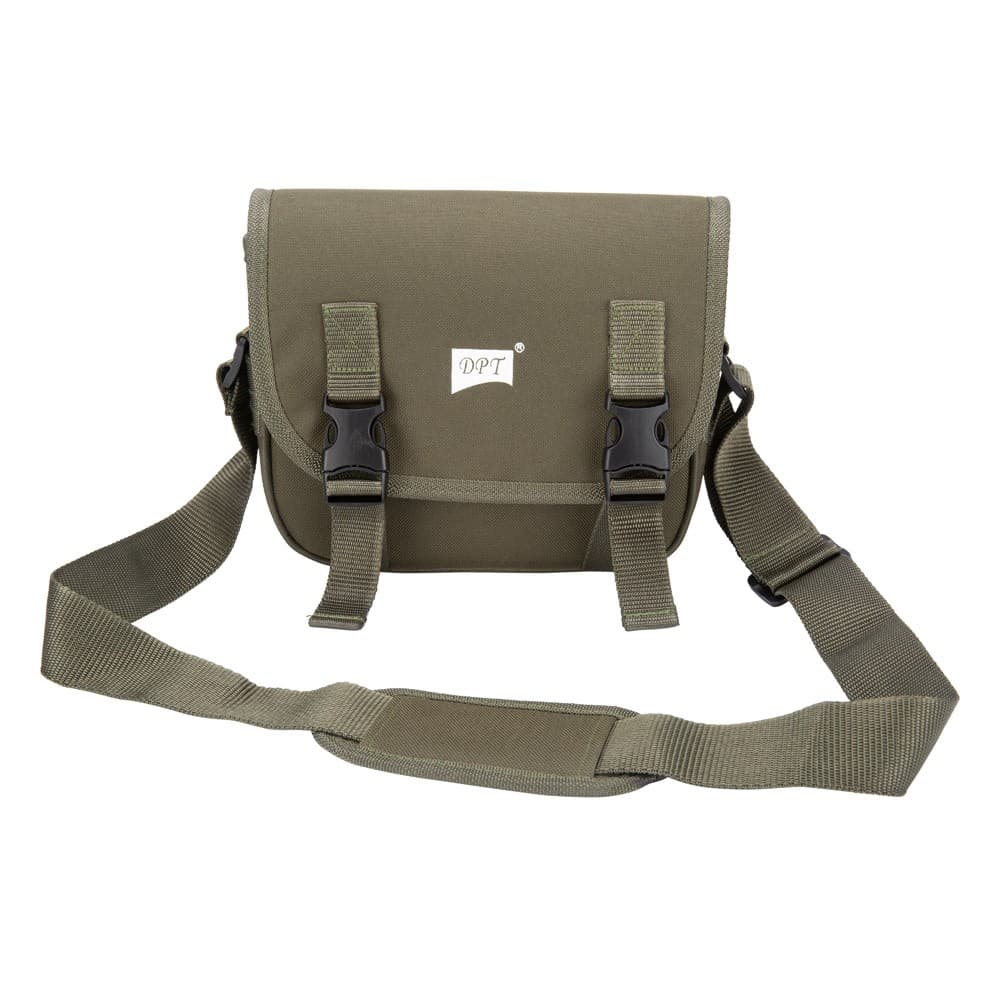

Pls fold the Interpupillary adjustment in lowness, put on the lens cover and put into the soft bag when you do not use it.
Pls use the clear and soft lens cloth to clear the lens. It is forbidden to clear the lens by hand, oilcloth, paper. Lens cloth should be keep in cleanliness in the binocular bag .Once the lens polluted by oil, please use the soft cotton cloth or silk to clear it with a little industrial alcohol.

Caution
The military binocular is precision instrument, please follow the principle in using and storage:
Be away from the ferromagnetism material during the storage the binocular with compass, otherwise the compass will work in big error or improperly.
Do not turn the diopter adjustment hand wheel in overexerting, stop to turn when it reach the limited position, otherwise the eyepieces assembly will be damaged!
Be careful to move the binocular to avoid overexerting or collision. To avoid the heavy vibration when you take it.

Storage:
Please put in the dryness place when you do not use it in long time. Suggest to use dryer, and be away from ferromagnetism material.
